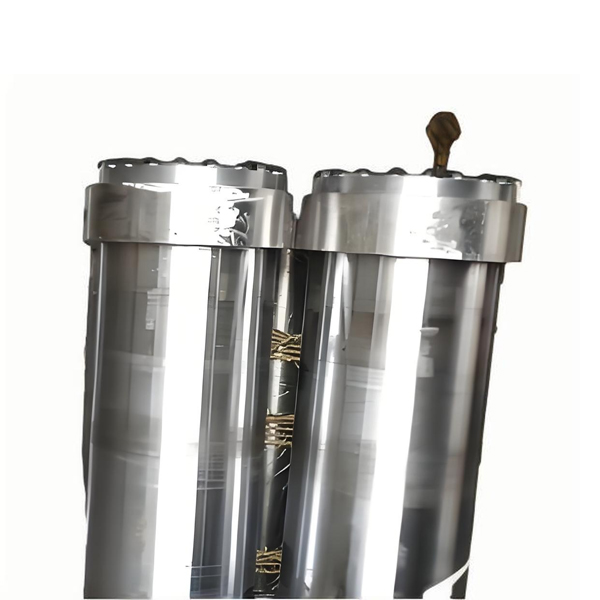

How to install an ultra-long oil cylinder correctly?

2026-01-29 11:12:05

How to Install an Ultra-Long Oil Cylinder Correctly

Introduction

Ultra-long oil cylinders are critical components in heavy machinery, hydraulic systems, and industrial applications where extended stroke lengths are required. Proper installation is essential to ensure optimal performance, longevity, and safety. Incorrect installation can lead to leaks, misalignment, premature wear, or even catastrophic failure. This guide provides a step-by-step approach to installing an ultra-long oil cylinder correctly, covering preparation, alignment, mounting, and testing.

---

1. Pre-Installation Preparation

Before installing an ultra-long oil cylinder, thorough preparation is necessary to avoid complications during the process.

1.1 Inspect the Cylinder

- Visual Inspection: Check for any visible damage, dents, or scratches on the cylinder barrel, rod, and mounting points.

- Seals and Fittings: Ensure all seals, O-rings, and hydraulic fittings are intact and free from defects.

- Rod Straightness: For ultra-long cylinders, verify the straightness of the piston rod using precision measuring tools like dial indicators or laser alignment devices. Even minor bends can cause misalignment.

1.2 Verify Specifications

- Confirm the cylinder’s stroke length, bore size, and mounting style match the application requirements.

- Check the hydraulic system’s pressure rating to ensure compatibility with the cylinder.

1.3 Prepare the Workspace

- Ensure the installation area is clean, dry, and free from debris.

- Use lifting equipment (e.g., cranes or hoists) capable of handling the cylinder’s weight and length safely.

- Have all necessary tools ready, including torque wrenches, alignment tools, and hydraulic fluid.

---

2. Mounting the Cylinder

Ultra-long oil cylinders are typically mounted in one of three ways: flange-mounted, clevis-mounted, or trunnion-mounted. The mounting method depends on the application and load requirements.

2.1 Flange Mounting

- Step 1: Align the cylinder’s flange with the mounting surface. Use shims if necessary to ensure perfect alignment.

- Step 2: Secure the flange with high-strength bolts and tighten them evenly in a crisscross pattern to avoid distortion.

- Step 3: Verify the cylinder’s alignment with the load path. Misalignment can cause side loading, leading to seal failure.

2.2 Clevis Mounting

- Step 1: Attach the clevis to the mounting pin or bracket. Ensure the pin is lubricated to reduce friction.

- Step 2: Install retaining rings or locking devices to prevent the pin from sliding out.

- Step 3: Check for free movement of the clevis to avoid binding during operation.

2.3 Trunnion Mounting

- Step 1: Position the trunnion mounts on the supporting structure. Ensure the trunnions are level and parallel.

- Step 2: Secure the trunnions with bolts and locknuts, applying the recommended torque.

- Step 3: Verify the cylinder can pivot freely without resistance.

---

3. Aligning the Cylinder

Proper alignment is critical for ultra-long oil cylinders due to their extended length. Misalignment can cause excessive wear, seal damage, or rod bending.

3.1 Align the Piston Rod

- Use a laser alignment tool or dial indicator to ensure the rod is perfectly straight relative to the load.

- Adjust the mounting points or use shims to correct any misalignment.

3.2 Check for Parallelism

- The cylinder’s centerline must be parallel to the direction of movement. Use precision levels or alignment fixtures to verify this.

3.3 Avoid Side Loading

- Ensure the load is applied axially (along the cylinder’s centerline). Side loads can damage the rod and seals.

---

4. Connecting Hydraulic Lines

4.1 Install Fittings

- Use thread sealant or Teflon tape on threaded fittings to prevent leaks.

- Tighten fittings to the manufacturer’s recommended torque values. Over-tightening can damage threads.

4.2 Hose/Rigid Tube Routing

- Ensure hydraulic hoses or tubes are routed to avoid sharp bends or kinks.

- Use clamps to secure hoses and prevent vibration-induced wear.

4.3 Bleed Air from the System

- After connecting the lines, bleed air from the cylinder by cycling it slowly several times. Air in the system can cause spongy operation or cavitation.

---

5. Testing and Commissioning

5.1 Pressure Testing

- Gradually increase hydraulic pressure to the operating level while monitoring for leaks.

- Check all connections and seals under pressure.

5.2 Stroke Test

- Cycle the cylinder through its full stroke multiple times to ensure smooth operation.

- Listen for unusual noises (e.g., knocking or squeaking) that may indicate misalignment or binding.

5.3 Load Testing

- Apply the intended load and verify the cylinder performs as expected.

- Monitor for any signs of rod deflection or seal leakage.

---

6. Maintenance and Inspection

After installation, regular maintenance is crucial for long-term performance.

6.1 Lubrication

- Lubricate mounting pins, rods, and moving parts as per the manufacturer’s guidelines.

6.2 Seal Inspection

- Periodically inspect seals for wear or leaks, especially in high-pressure applications.

6.3 Rod Protection

- Use rod wipers or boots to prevent contamination from dirt or debris, which can scratch the rod surface.

---

Conclusion

Installing an ultra-long oil cylinder correctly requires careful planning, precise alignment, and thorough testing. By following these steps, you can ensure the cylinder operates efficiently, safely, and with minimal wear. Always refer to the manufacturer’s guidelines for specific instructions and consult hydraulic experts if uncertainties arise. Proper installation not only extends the cylinder’s lifespan but also enhances the overall performance of the hydraulic system.
